Installing Electric Power Brakes

cpp electroboost install 1967 72 chevy c10 truck

1. Paul Wilson does some eyeball engineering while mocking up Classic Performance Products’ Electric E-Booster Power Brake Kit under the hood of his 1952 Chevy pickup.

Installing Electric Power Brakes

BY Ron Ceridono

Images BY THE AUTHOR

egardless of how you feel about electric vehicles, they do offer some technological breakthroughs that can benefit those of us who still love our fossil-fueled classic trucks—namely electric power brake boosters. That same technology is available from Classic Performance Products (CPP) with their Electric E-Booster Power Brake Kits.

Prior to the introduction of electric power brakes, the two most common types of boosters were vacuum and hydraulic. The disadvantage to vacuum power brakes is that high-performance engines with aggressive camshafts generally have low manifold vacuum at idle, which limits a vacuum booster’s effectiveness unless a vacuum pump is added. Hydraulic boosters require a power steering pump and hoses, which can add clutter to the engine compartment. By comparison CPP’s Electric E-Booster Power Brake Kit doesn’t require manifold vacuum and there are no hydraulic hoses needed. The E-Booster is a completely self-contained unit; it only requires connecting three wires from the included harness.

As for how CPP’s electric power brake system functions, it uses a Bosch electromechanical booster like those found on most EVs today. This state-of-the-art system uses a sensor to detect the amount of brake pedal movement, the sensor then sends a signal to the control unit that activates a 12V electric motor. Acting through a three-stage gear system, the motor increases the pressure applied to the master cylinder pushrod, thereby increasing the brake system’s hydraulic pressure. Thanks to sophisticated electronics, the control unit modulates the amount of boost applied to the master cylinder according to brake pedal pressure, so there is never too little or too much.

The E-Booster installation shown here was done on Paul Wilson’s 1952 Chevy pickup, also included was CPP’s firewall-mounted brake pedal assembly. The pedal is offset in relation to the booster, which was necessary due to the recessed firewall. While our booster came with a four-hole mounting bracket to match the brake pedal mounting flange, CPP offers booster brackets to fit a variety of Chevy and Ford pickups with factory firewall-mounted master cylinders.

CPP’s E-Booster system makes it possible to incorporate the latest power brake technology in any classic truck. Proven after many millions of miles in OEM applications, electric power brakes are reliable and provide outstanding performance with excellent pedal feel under all braking conditions. An electric power brake system from CPP is a great way to put a stop to any truck.

cpp electroboost brake master cylinder combo kit

2. CPP’s new Electric E-Booster Power Brake Kit (PN UNIEBK-4-SB) is a self-contained unit that allows the latest technology to be adapted to virtually any vehicle.

cpp proportioning valve bracket with master cylinder

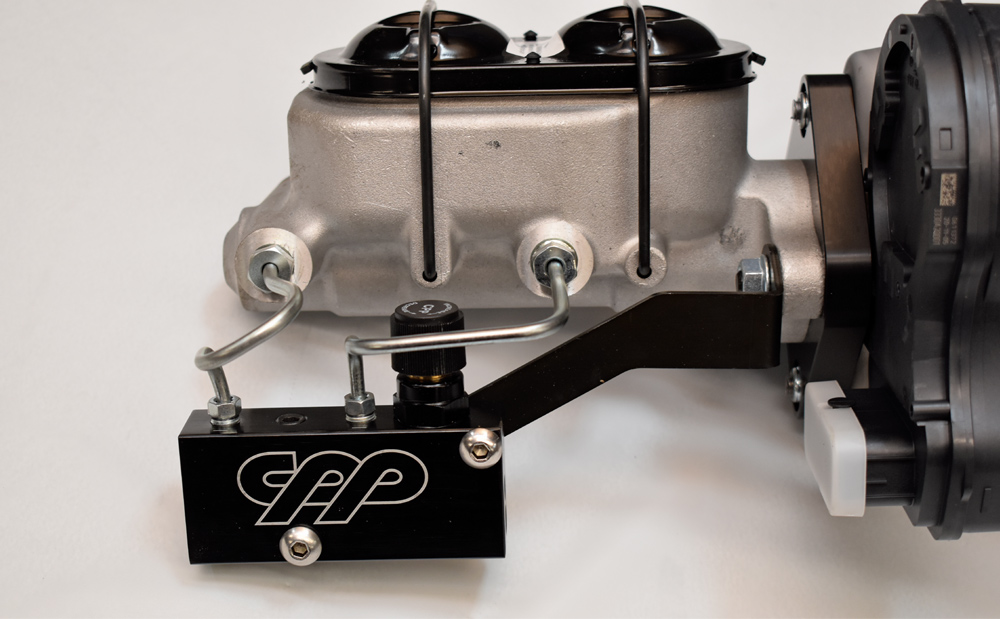

3. Included in CPP’s electric brake booster kit is a 1-1/8-inch bore, dual-chamber master cylinder with an attached proportioning valve for adjusting front to rear brake bias.

cpp electroboost firewall mount with pedal pushrod

4. This electric brake booster assembly came with a universal four-bolt firewall mounting bracket that matched the CPP pedal assembly.

cpp electroboost firewall backing plate for c10

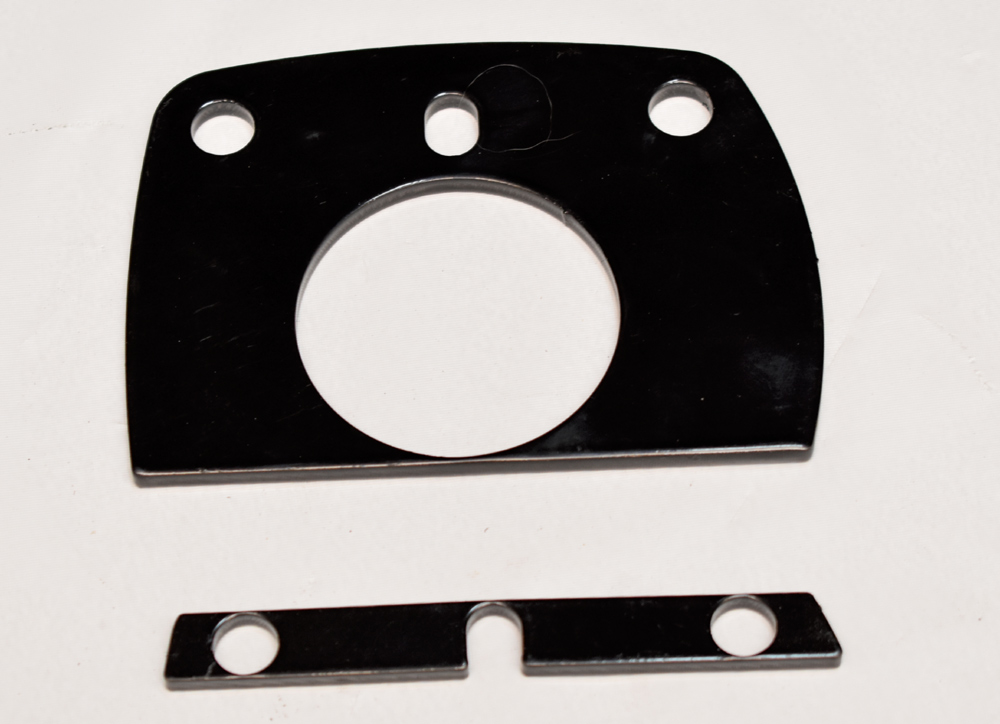

5. Included in the brake booster kit is a reinforcement plate that goes on the inside of the firewall. In our case it wasn’t necessary as the swing pedal assembly served the same purpose.

cpp electroboost hardware clevis bolts washers kit

6. Also included in the kit is a hardware package with the necessary mounting hardware and a pedal clevis.

cpp electroboost bosch style 16 pin wiring plug

7. There are two electrical plugs on the booster assembly; the larger one is on the driver side below the master cylinder.

cpp electroboost booster side connector closeup

8. On the passenger side of the booster is a second, smaller plug; both connect to the included wiring harness.

cpp electroboost wiring harness kit bosch connectors

9. Other than plugging the harness into the booster there are only three wires to connect: a 40-amp fused circuit for power, 5-amp “key on” power, and a ground.

cpp electroboost under dash pedal mount bracket

10. We used a CPP 1947-53 Chevy truck brake pedal assembly (PN 4753FBB); it attaches to the firewall and has two supports that bolt to the dashboard.

cpp under dash pedal bracket install 1967 72 chevy c10

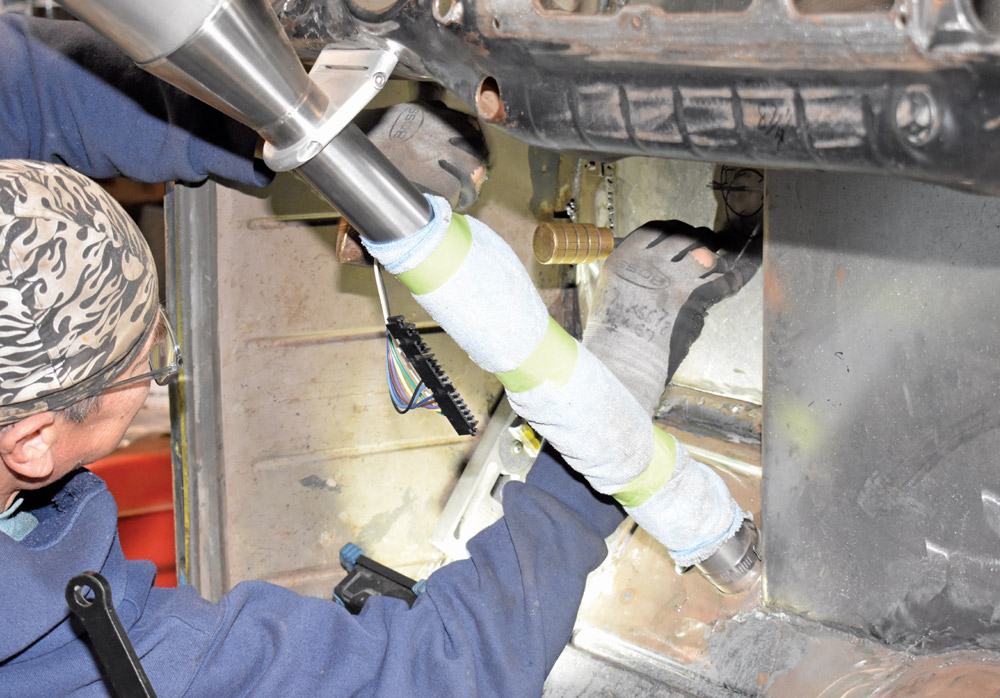

11. With the pedal assembly clamped to the dashboard rail, the four attachment holes were marked on the firewall.

cpp pedal bracket mockup steering column clearance check

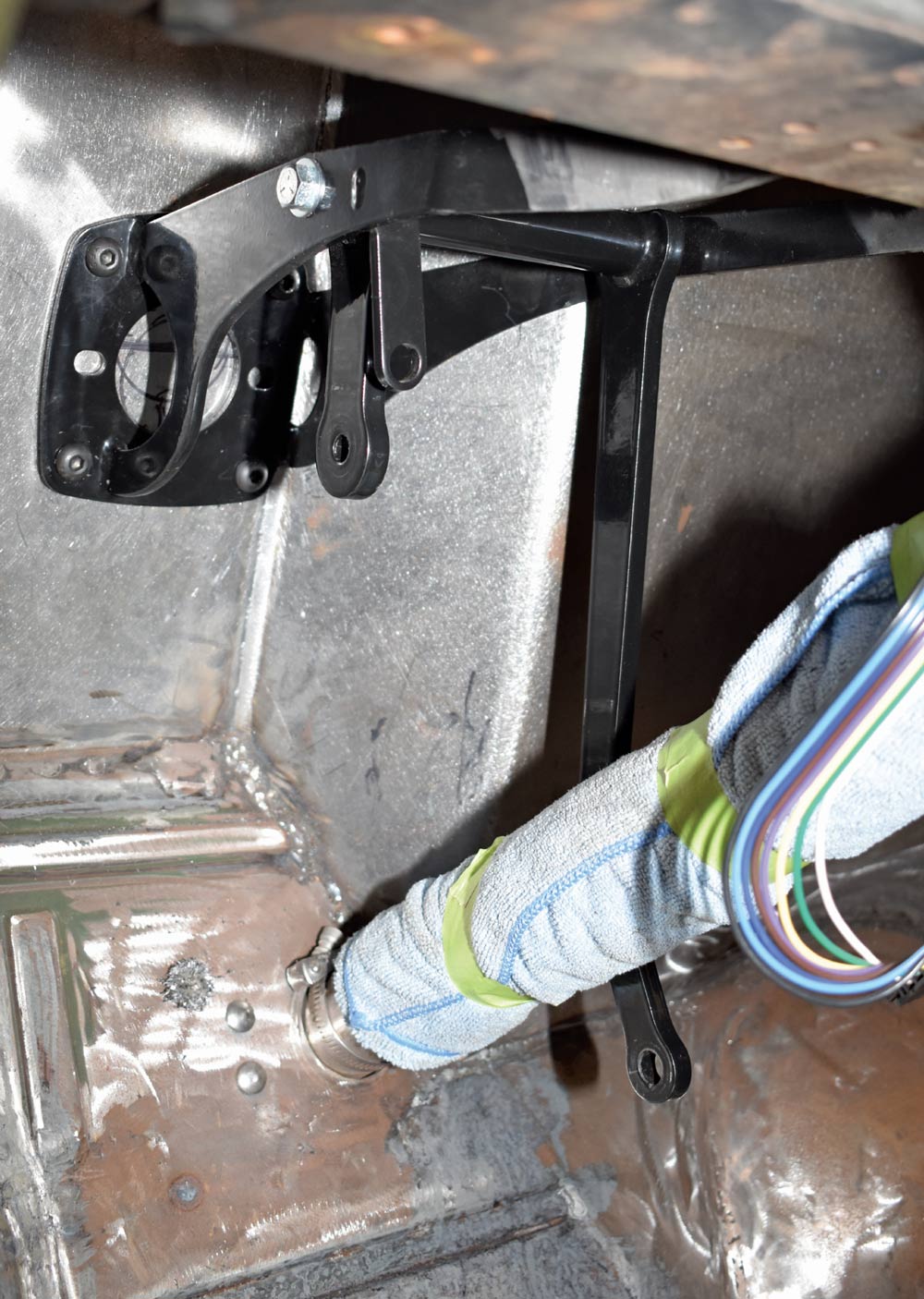

12. The CPP pedal assembly offsets the booster to the driver side, which works perfectly with the recessed firewall. The vertical bracket is for a stoplight switch.

cpp electroboost firewall hole saw drilling installation

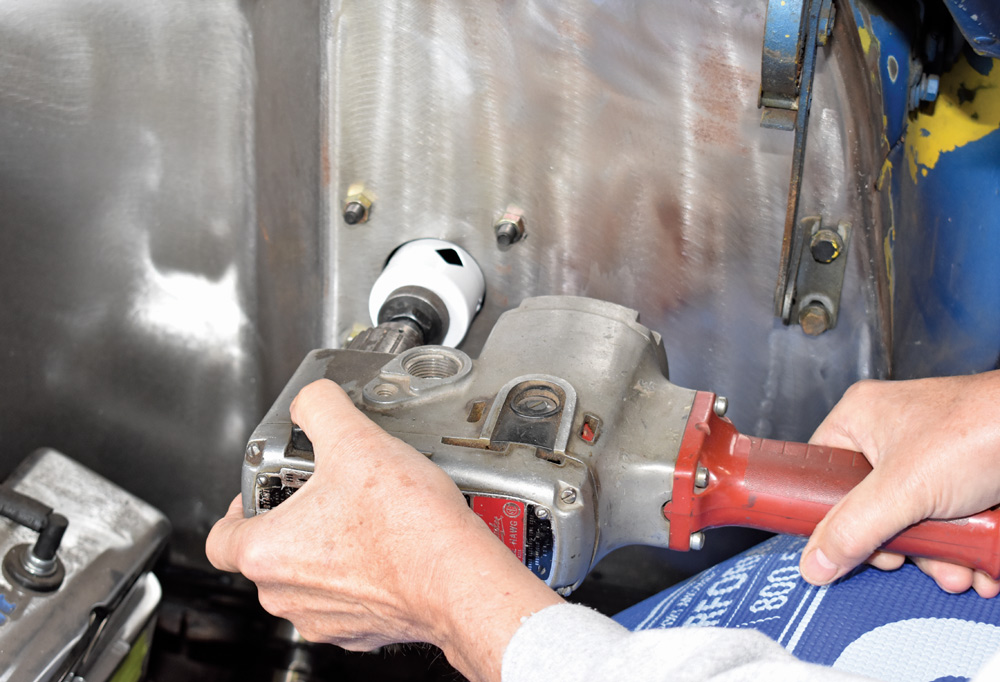

13. After bolting the pedal assembly to the firewall the hole necessary for the booster pushrod was marked and cut.

cpp electroboost firewall prep hole and stud alignment

14. As the bolt pattern for the brake booster and the pedal assembly are the same, only one set of mounting holes in the firewall is required.

cpp brake pedal linkage and bracket mockup under dash

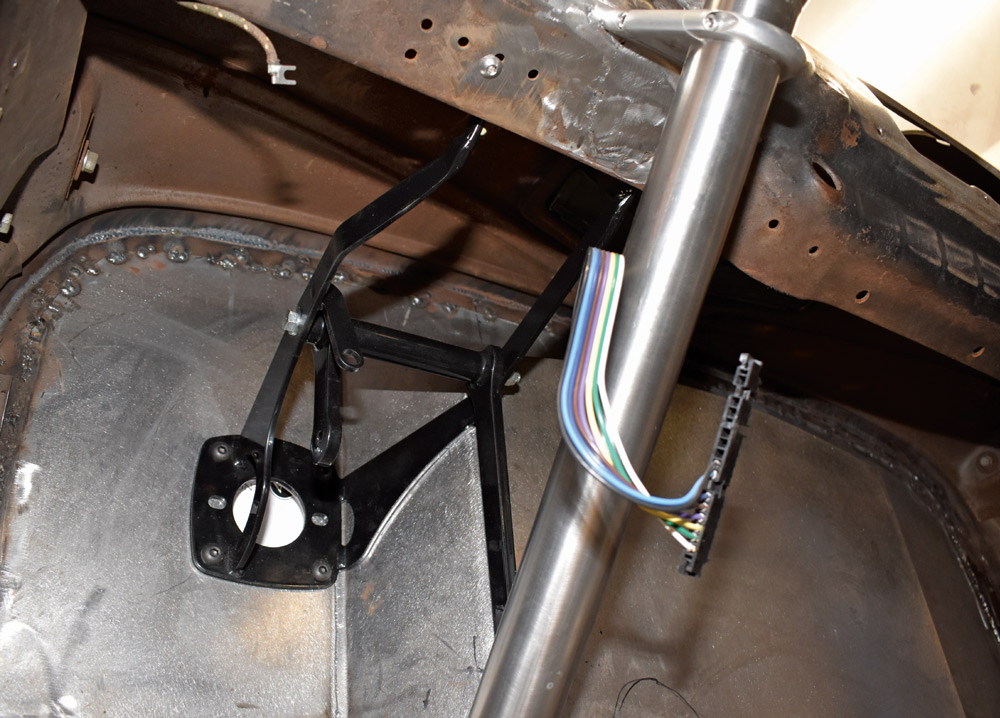

15. Note how the pedal assembly fits tightly against the recessed firewall. By bolting to the firewall and the dashboard there is no possibility of the pedal assembly flexing in use.

cpp master cylinder fittings bleeder kit with hardware

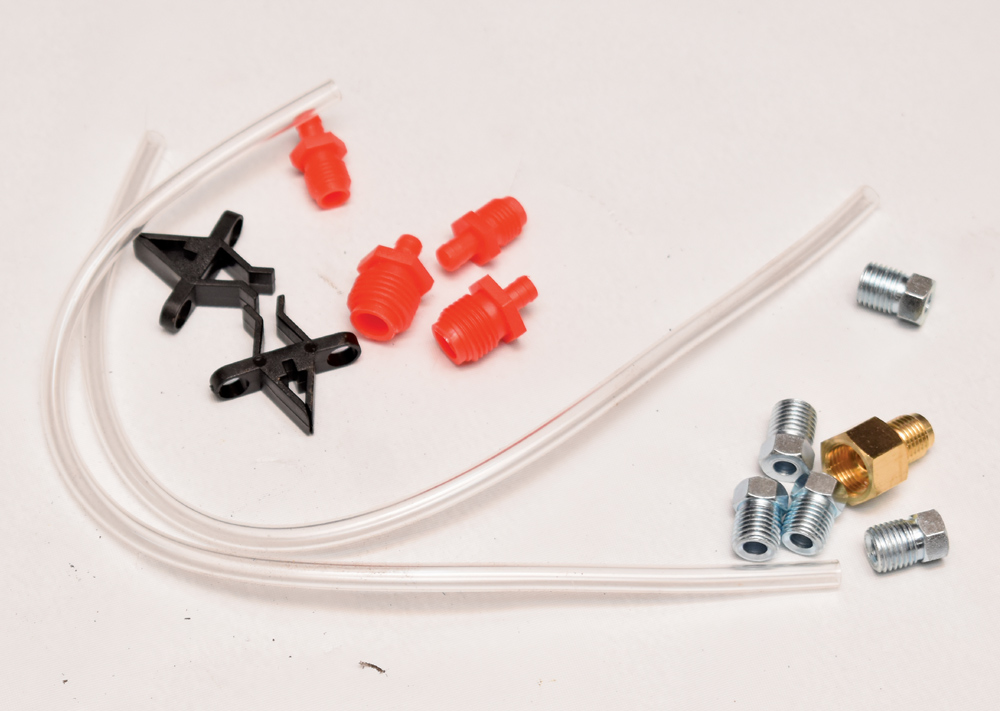

16. Included with the master cylinder/booster assembly are fittings and tubing to bleed the master cylinder in place.

cpp disc brake conversion front kit 67 72 c10

17. The CPP electric booster kit can be used with any brake system, in this case C4 Corvette calipers and rotors are used up front.

cpp rear disc brake kit install 5 lug chevy truck

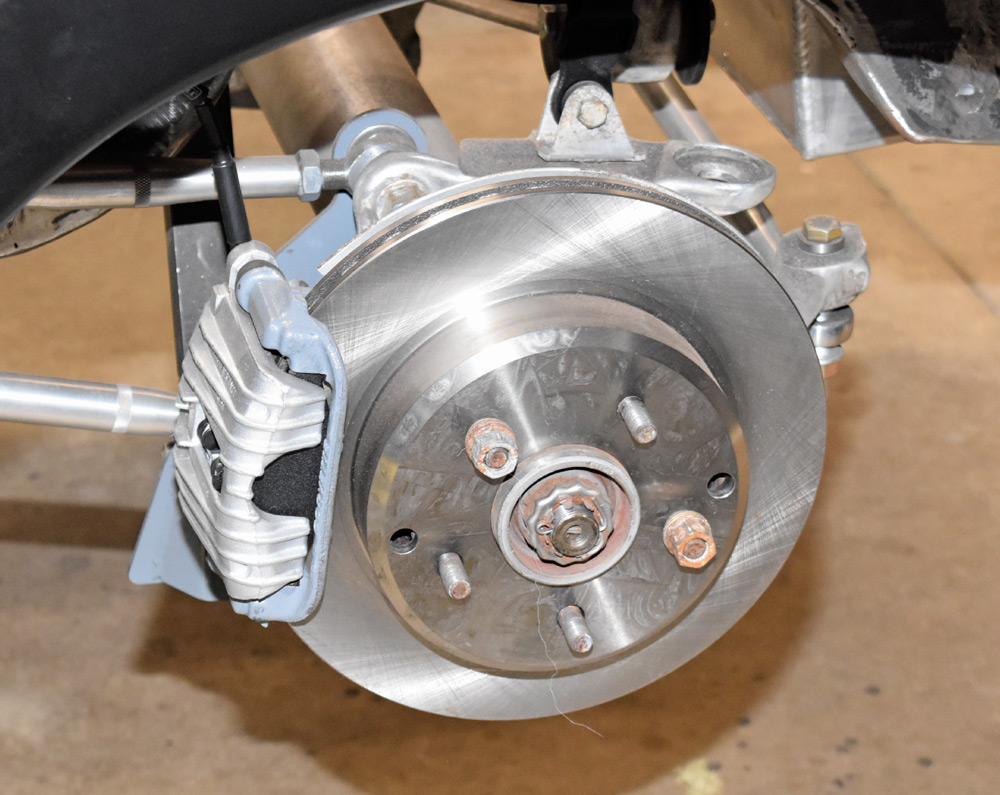

18. CPP’s electric booster, master cylinder, and proportioning valve combination is ideal with four-wheel disc brakes; this truck also has C4 components in the rear.

cpp tilt steering column install 1967 72 c10 dash

19. In place, the brake pedal arm fits closely to the right side of the steering column and provides for full master cylinder travel.

cpp brake pedal fitment test driver mockup 1967 72 c10

20. With the brake pedal located, the throttle pedal was positioned to make the movement from one to the other comfortable. Buddy couldn’t care less as his tennis ball was missing.

cpp electroboost install complete 1955 59 chevy task force truck engine bay

21. At this point all that is left to do is plug in the wiring harness. Once installed the CPP brake system is bled like any other.

SOURCE

Classic Performance Products
(800) 760-7438
classicperform.com
