Blue and silver two-toned squarebody crew cab.
Modern-Day Square...
Roadster Shop Style!
BY RON COVELL IMAGES COURTESY OF ROADSTER SHOP
I

f you love the look of vintage Squarebody GM trucks but want the driveability of a modern vehicle, including four-wheel drive and independent front suspension, Roadster Shop has the answer. Their Legend Series chassis is a direct bolt-in for 1973-87 K10-series trucks. Extensively engineered to accept the original cab, front end, and bed, it also provides a stout foundation for a modern 460hp LT1 crate engine, paired with a heavy-duty transfer case. Roadster Shop recently completed a Crew Cab project using the “HD” version of this platform, using a turbocharged Duramax diesel engine with an Allison transmission. In this article we’ll take a look at some of the details of this impressive build.

A solid truck was sourced with minimal structural damage, but in true Roadster Shop fashion, every component was disassembled, cleaned, and refined, with numerous custom touches added along the way. Although the original truck was equipped with a longbed, the plan from the start was to convert it to a shortbed configuration.

The cab was mounted on a dolly to make it easy to maneuver around the shop, and all holes and dents were smoothed. Special attention was given to achieving precise door fit and uniform gaps. The driprails above the doors were removed for a cleaner, smoother appearance.

A new bed was assembled from AMD panels, with careful attention paid to panel alignment and overall squareness.

The Legend Series chassis and its components are available in a black powdercoated finish, ensuring durability and long-term resistance to wear. The chassis and drivetrain were fully assembled, plumbed, and wired before the body components were installed.

All body components were painted off the frame, finished in a rich blue base color with a white band down the sides that gives the truck a classy yet traditional look.

A chassis lift was used to carefully lower the cab and bed onto the frame, allowing precise control as the components were brought together.

A completely new dashboard was CAD-designed, with prototype parts 3-D printed in polymer to verify the fit and appearance. Once finalized, a striking gauge cluster was machined from solid aluminum billet, and the entire new dash panel was built from scratch. It provides the perfect finishing touch to an otherwise-traditional interior, aligning beautifully with the philosophy of updating a classic design while respecting its heritage.

Original blue survivor squarebody crew cab truck.
1. A “survivor” Squarebody Crew Cab truck served as the foundation for this project. The body had numerous small imperfections but very little rust damage.
Rear view of survivor longbed Chevy truck.
2. The original longbed will be replaced with a new shortbed, and the body will be mounted on a Roadster Shop Legend Series chassis.
Bare cab on dolly undergoing reconditioning process.
3. The cab was removed from the chassis to allow for a thorough reconditioning.

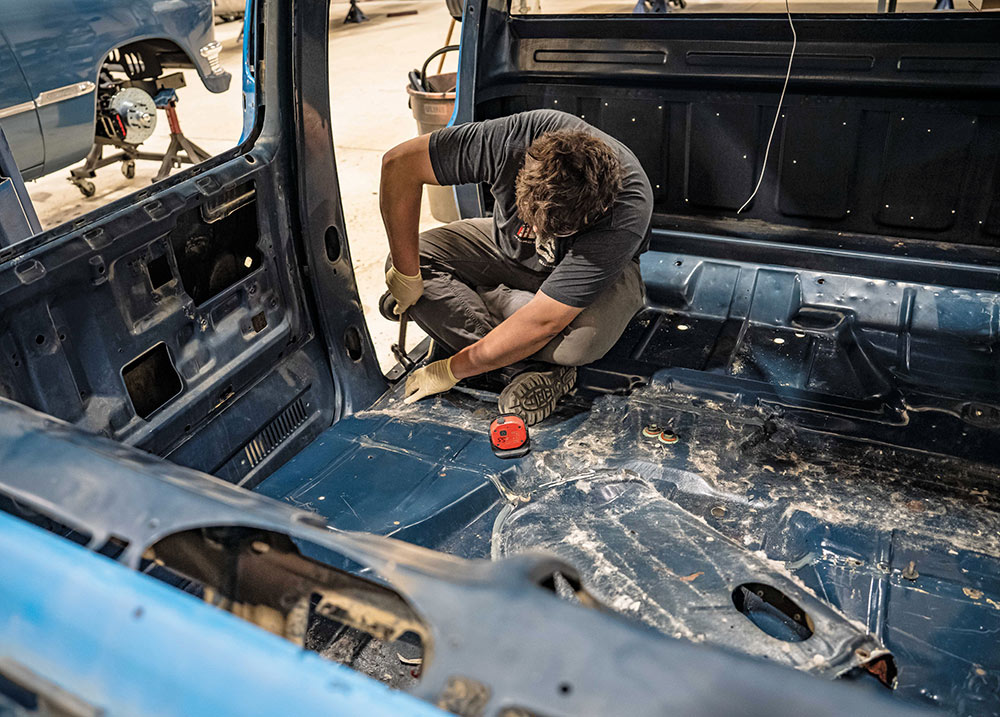

Inspecting and repairing sound cab floor panel.
4. The cab floor was surprisingly sound, and the few minor defects were repaired.
Filling and smoothing holes in door panels.
5. All extraneous holes in the body were filled and smoothed.
Smoothing holes and dents on cab back.
6. The back of the cab had numerous holes and dents, which were all carefully smoothed.

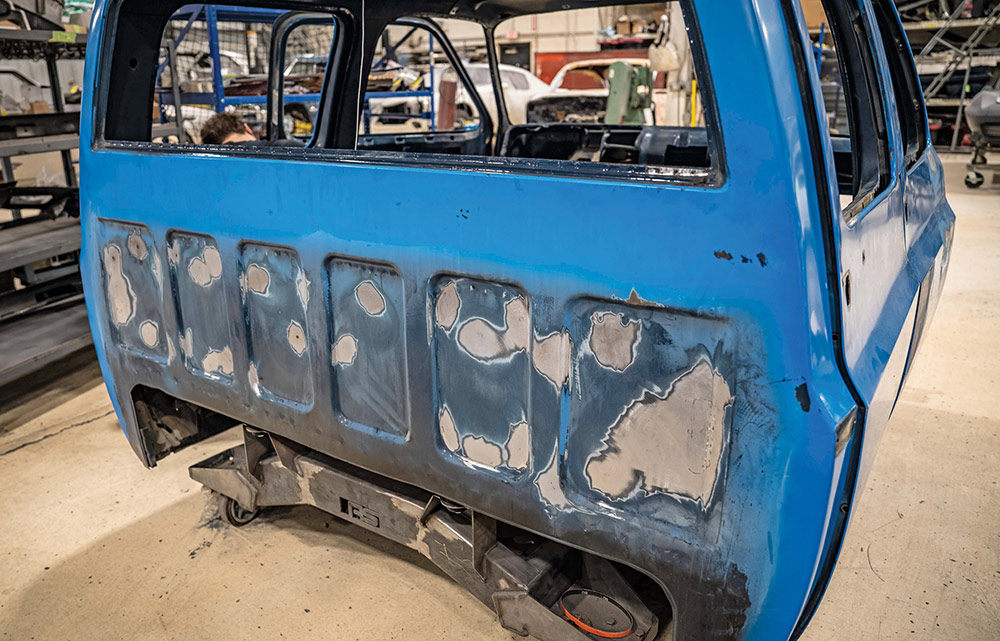

Refined rear cab panel after metal work.
7. After just a few hours of work, the back of the cab is looking much better. Note the dolly that supports the cab at the original mounting points, allowing it to be moved safely and easily.
Media blasted bare metal crew cab structure.
8. Once the rough bodywork was completed, all sheetmetal parts were media blasted to remove paint and rust.
Welding door hinges for precise cab fitment.
9. Considerable time was spent dialing-in the door hinges and latches to ensure precise fitment of the doors to the cab.
Removing driprails for cleaner cab body lines.
10. The driprails were removed from the cab for a cleaner, smoother appearance.
Checking for uniform gaps around truck doors.
11. Note the uniform door gaps; this level of detail is a hallmark of Roadster Shop builds.
Refining imperfections on hood underside with tool.
12. All removable panels received the same attention. Here, minor imperfections are being refined on the underside of the hood.
Underside of hood showing crisp factory-style detail.
13. After careful detail work, the hood looks as crisp as it did when it left the factory.
New black replacement shortbed panels from AMD.
14. Panels for a brand-new shortbed were ordered from AMD.
Assembled truck bed sections checked for squareness.
15. The bed sections were carefully assembled, with all joints checked for squareness.
Worker detailing lower areas of elevated bed.
16. Raising the bed on a lift makes it easier to address details on the lower areas.
CAD rendering of Legend Series front suspension.
17. Here’s a view of the front section of the Legend Series chassis. It uses components from a Silverado independent front suspension, along with a GM differential and axle shafts.

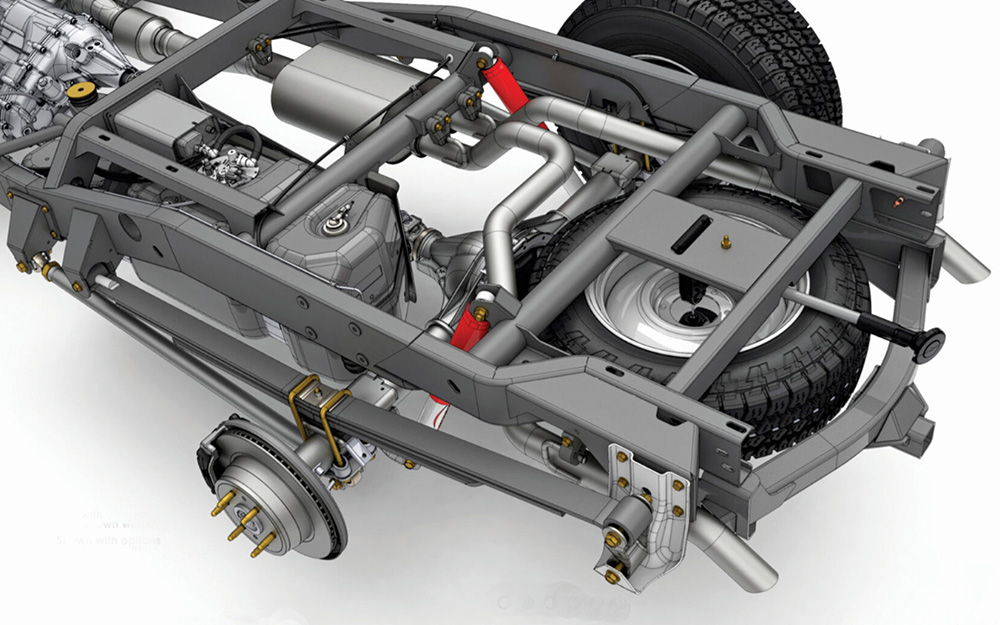

3D view of rear axle and chassis structure.
18. The rear features a GM Silverado 14-bolt axle with a 3.42 ratio and positraction, along with 12-inch rear disc brakes.
Legend Series heavy-duty frame with crossbracing.
19. This is the “HD” version of the Legend Series frame, built with 3×6-inch main rails, and substantial crossbracing.
Staged powdercoated frame components for assembly.
20. Additional frame components are staged here, ready for assembly.

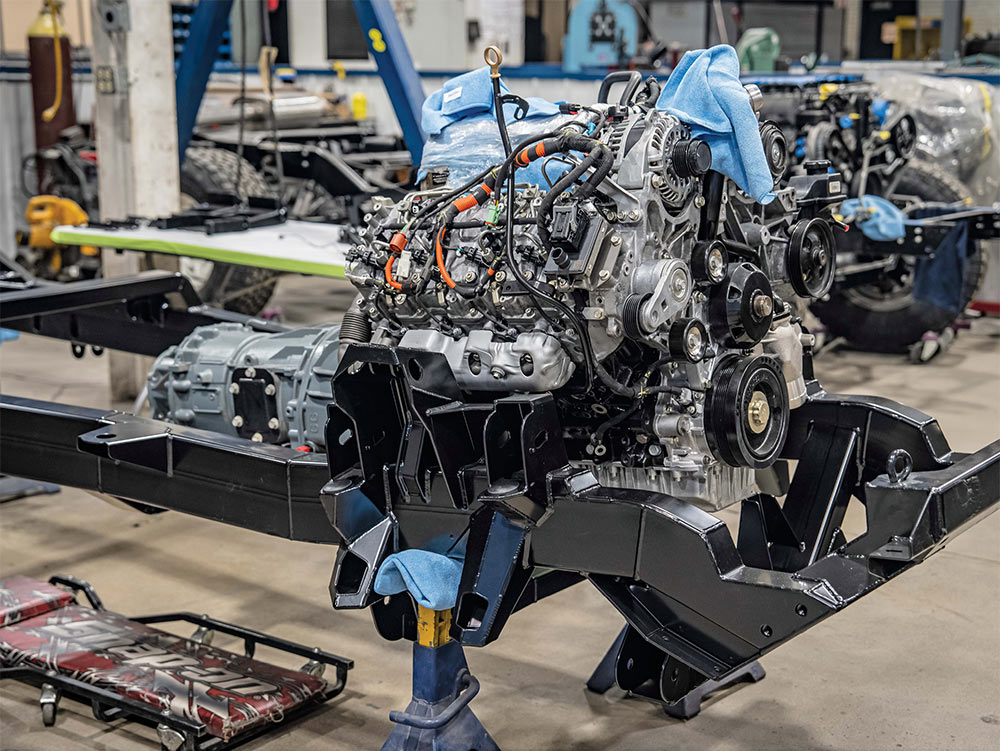

Duramax diesel engine installed in new chassis.
21. This chassis is configured to accommodate a Duramax diesel engine, coupled with an Allison transmission and heavy-duty transfer case.

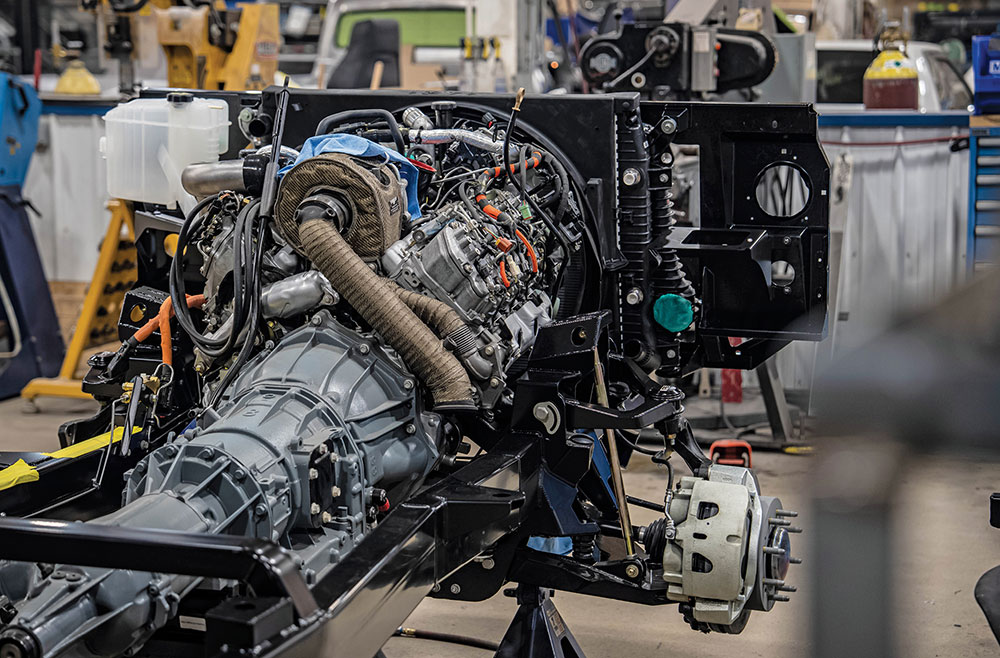

Turbocharger nestled between engine cylinder banks.
22. Note how efficiently the turbocharger is nestled between the cylinder banks, behind the engine centerline.
Completed engine and brake plumbing on chassis.
23. All engine and brake plumbing, along with the wiring, was completed before the body was installed on the chassis.
Computer screen showing 3D scan of dashboard.
24. The original dash was scanned to establish the base dimensions for the completely new dashboard and instrument cluster.

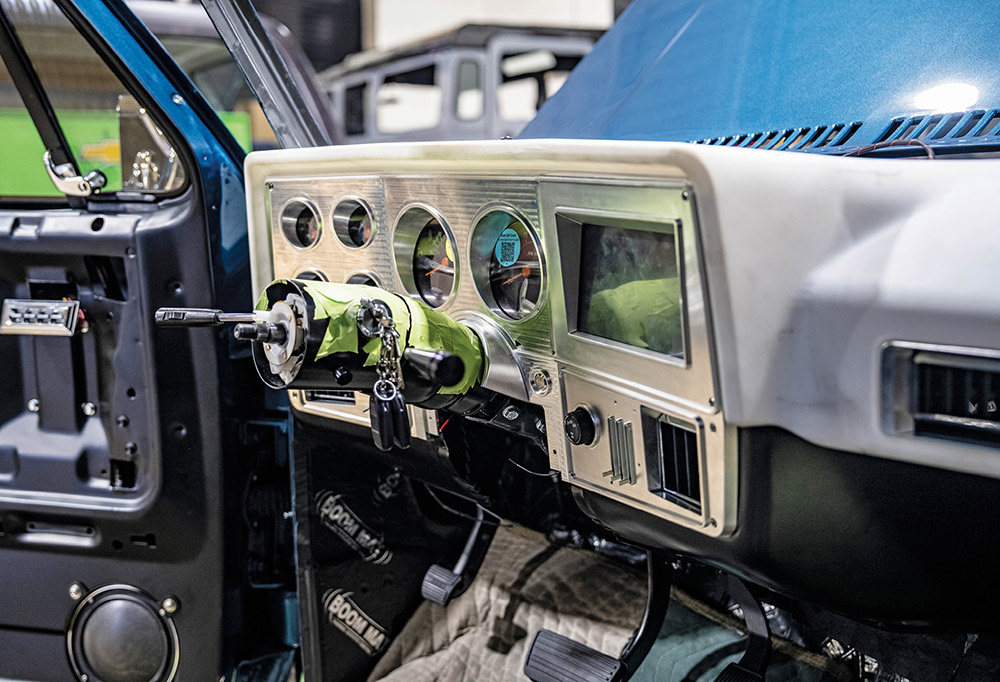

Trial fitting custom-built instrument cluster in dash.
25. The new instrument cluster is being trial fitted here.
Intricate detailing on machined aluminum gauge cluster.
26. A closeup reveals the intricate detailing of the new instrument cluster.

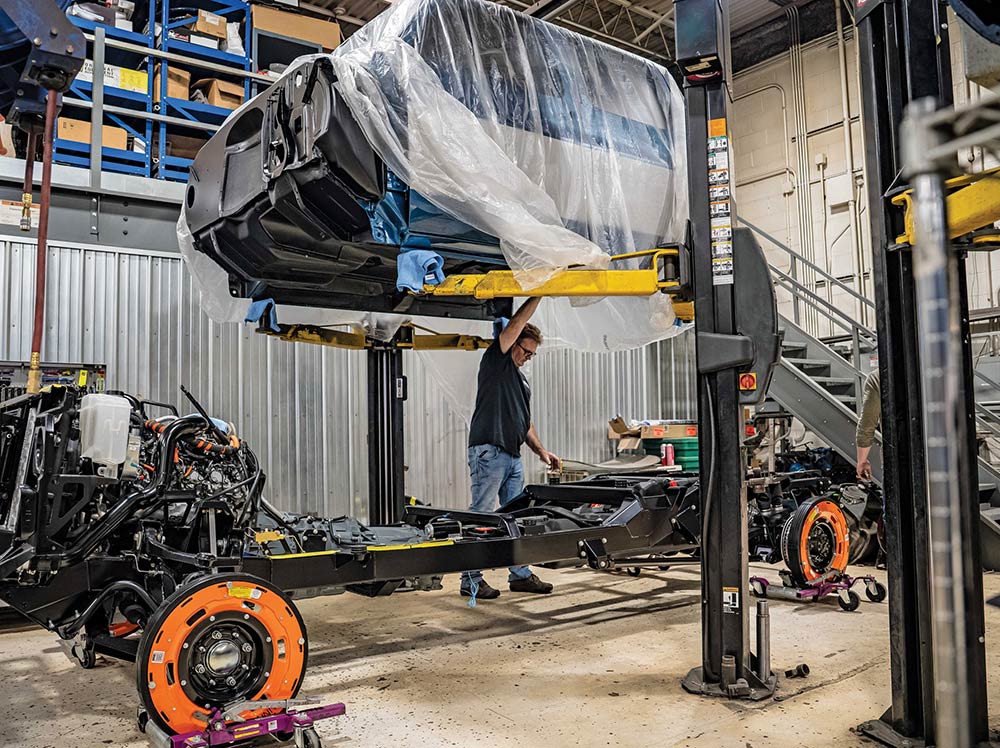

Lowering crew cab onto assembled Legend chassis.
27. With chassis assembly complete, it’s time to lower the cab onto the frame.
Lift providing controlled body placement onto frame.
28. A lift provides a safe, controlled way to lower the body into position.
Rear chassis section prepared for bed installation.
29. The rear of the chassis is prepared for the bed installation.

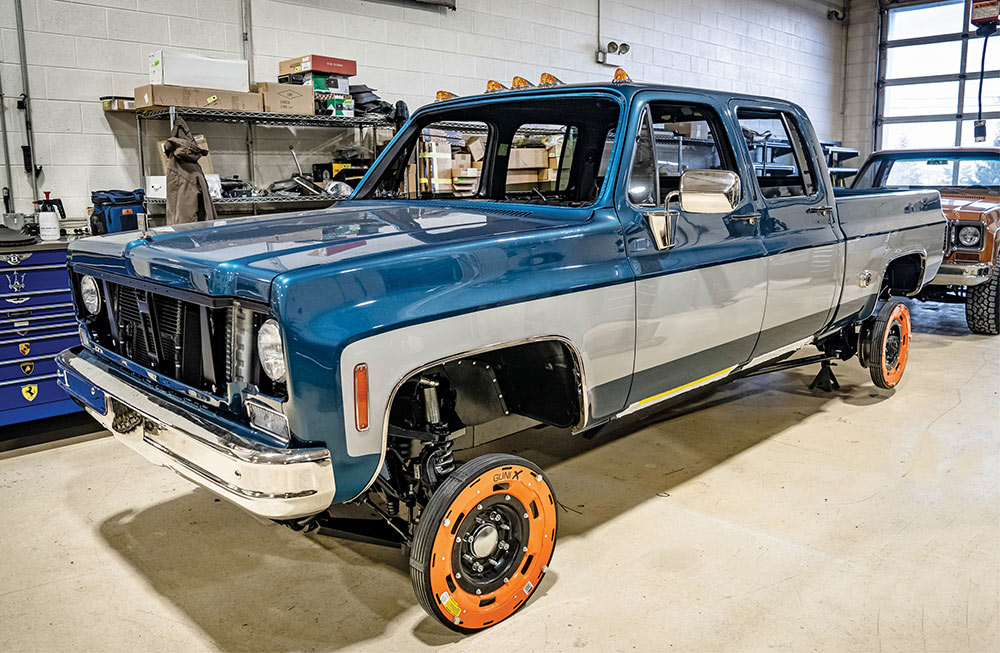

Proportions of finished crew cab on shortbed chassis.
30. With the cab mounted on the chassis, you can begin to see the proportions of the finished truck.
